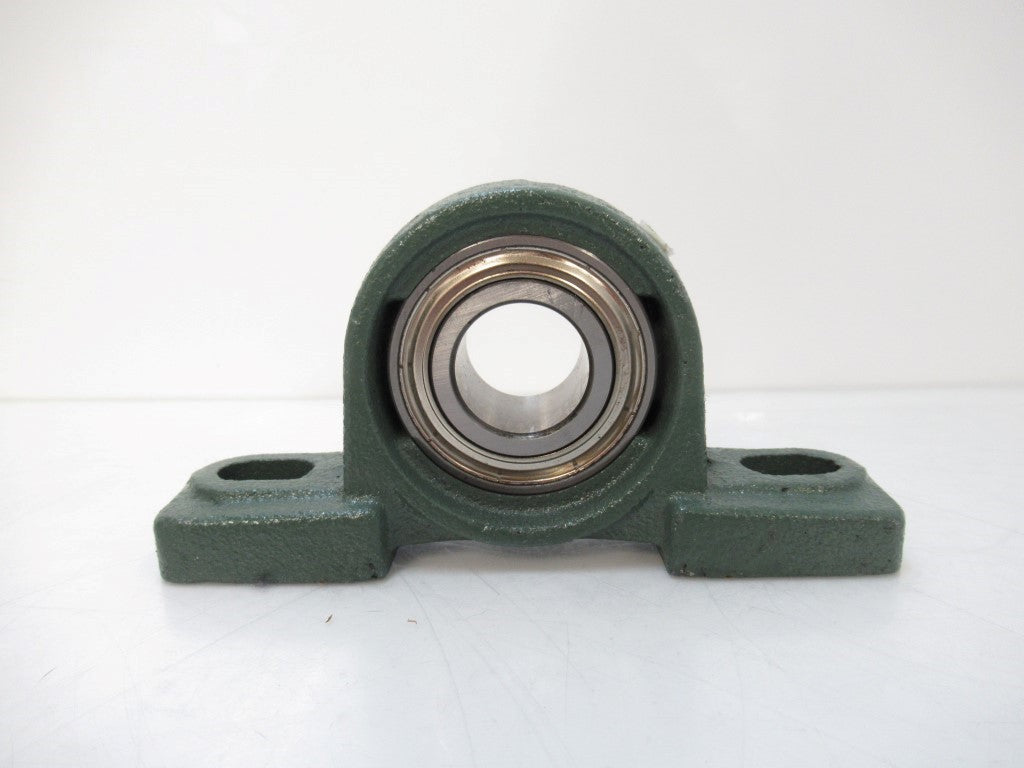

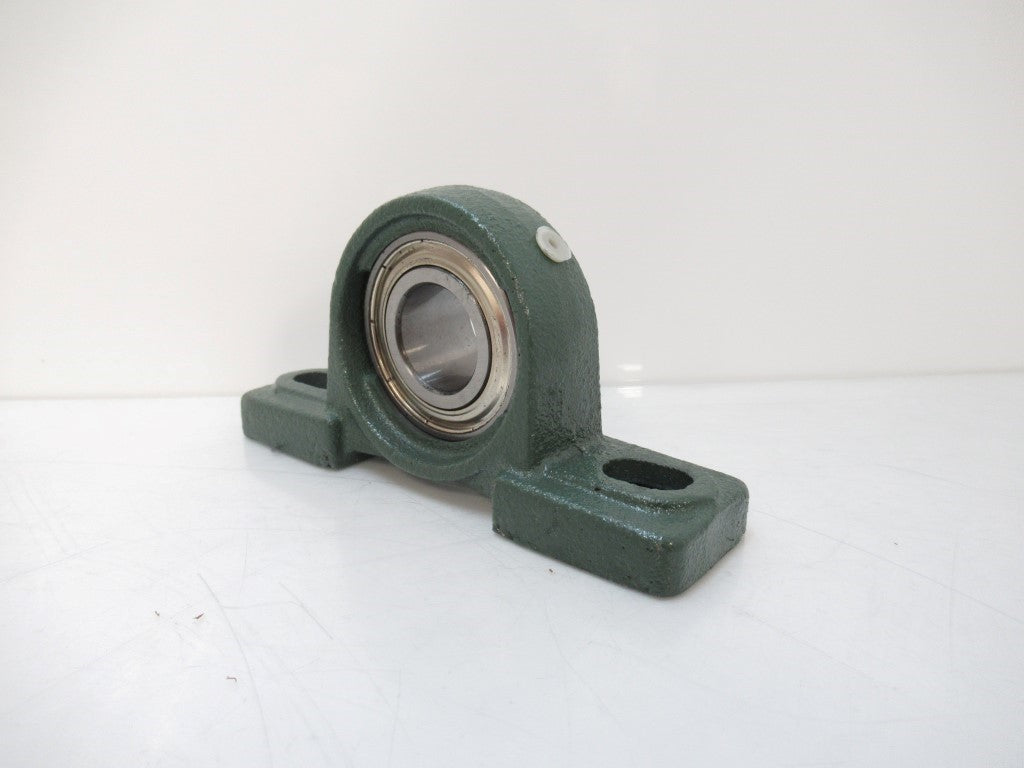

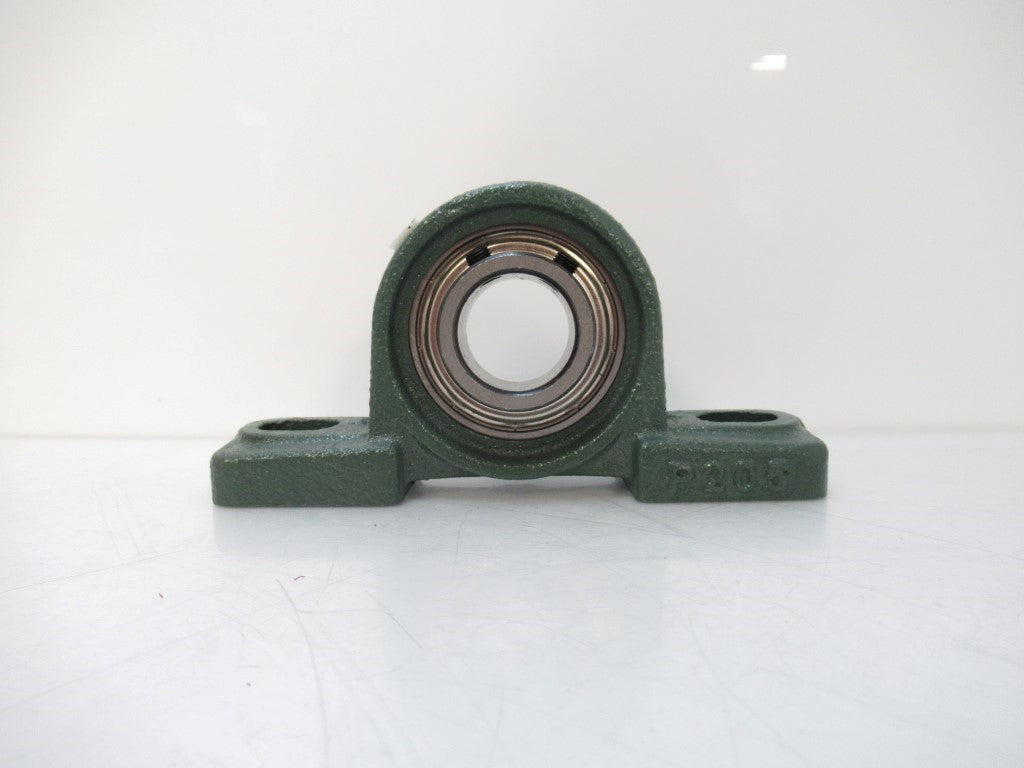

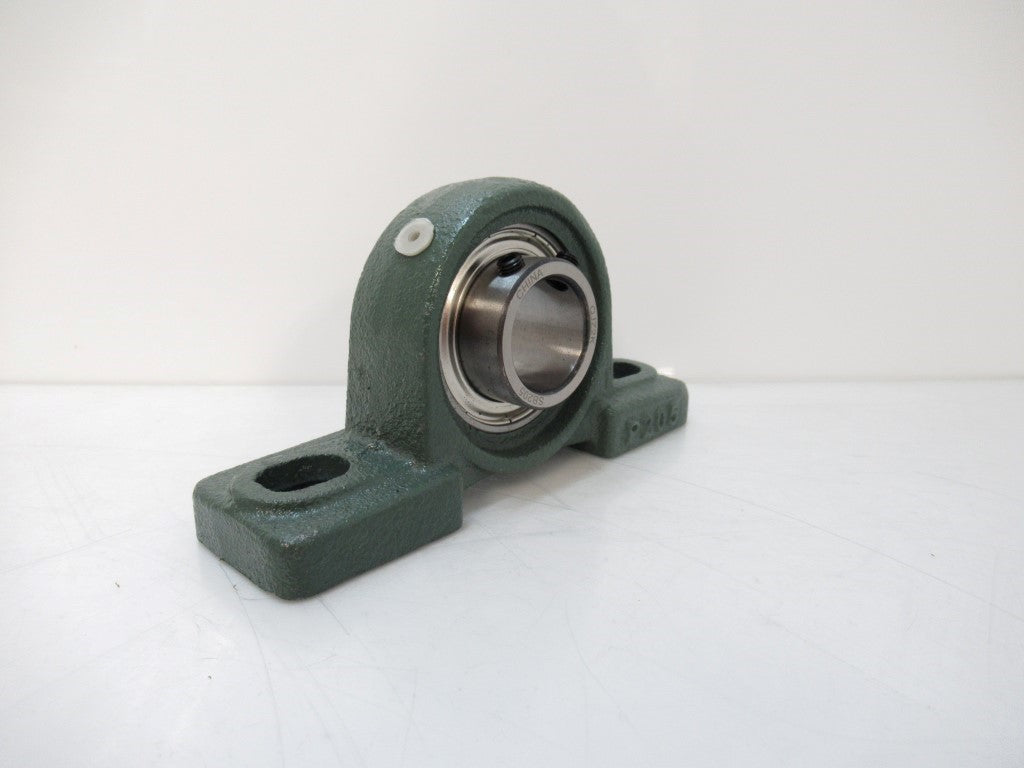

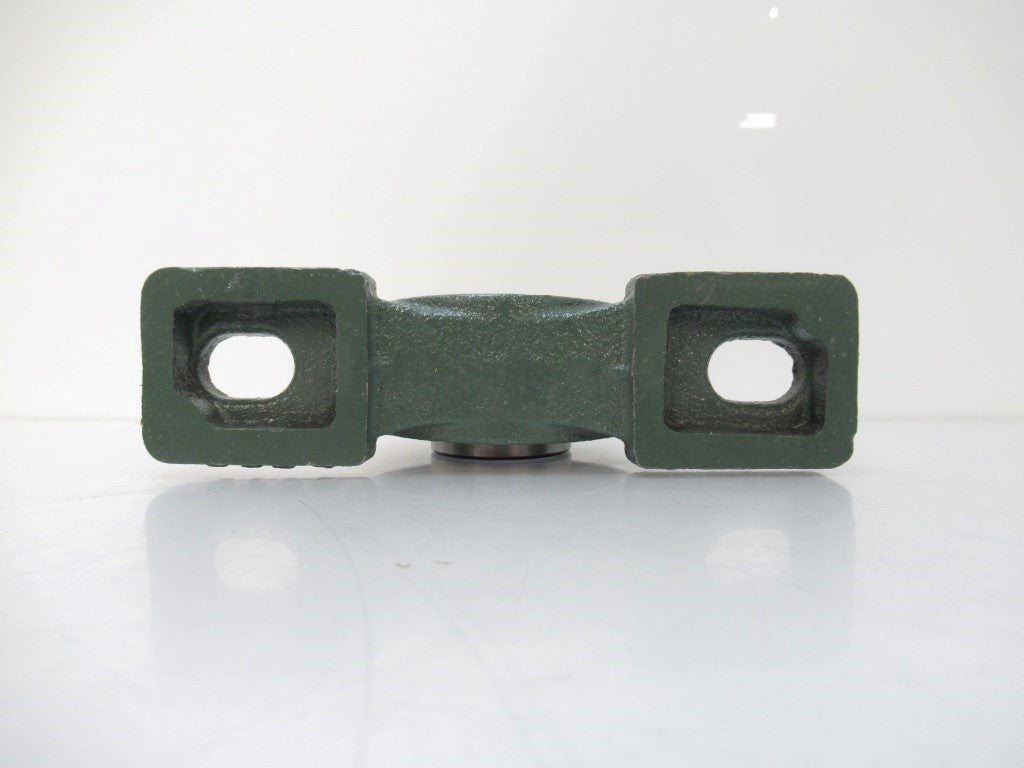

GCP205 GRB Pillow Block Bearing, Ball, 25 mm Bore
Country Of Origin: Country Not Available
Product Information
- GCP205
- Item: Pillow Block Bearing
- Bearing Insert Type: Ball
- Bolt Hole Center-To-Center: 105 mm
- Bearing Housing Material Type: Cast Iron
- Bearing Insert Material: 52100 Chrome Steel
- Number Of Bolts: 2
- Overall Height: 71 mm
- Overall Length: 140 mm
- Dynamic Load Capacity: 3147 lb.
- Temp. Range: -40 Degrees To 250 Degrees F
- Standards: ISO, AFBMA
- Bore Dia.: 25 mm
- Mounting Surface To Shaft Center: 36.5 mm
- Shaft Locking Type: Set Screw
- Series: UCP
- Bolt Size: 3/8"
- Overall Width: 34.1 mm
- Bearing Lubrication: Shell Alvania RL2 Or NLGI #2 Equivalent
- Static Load Capacity: 1765 lb.
- Finish: Painted
-
