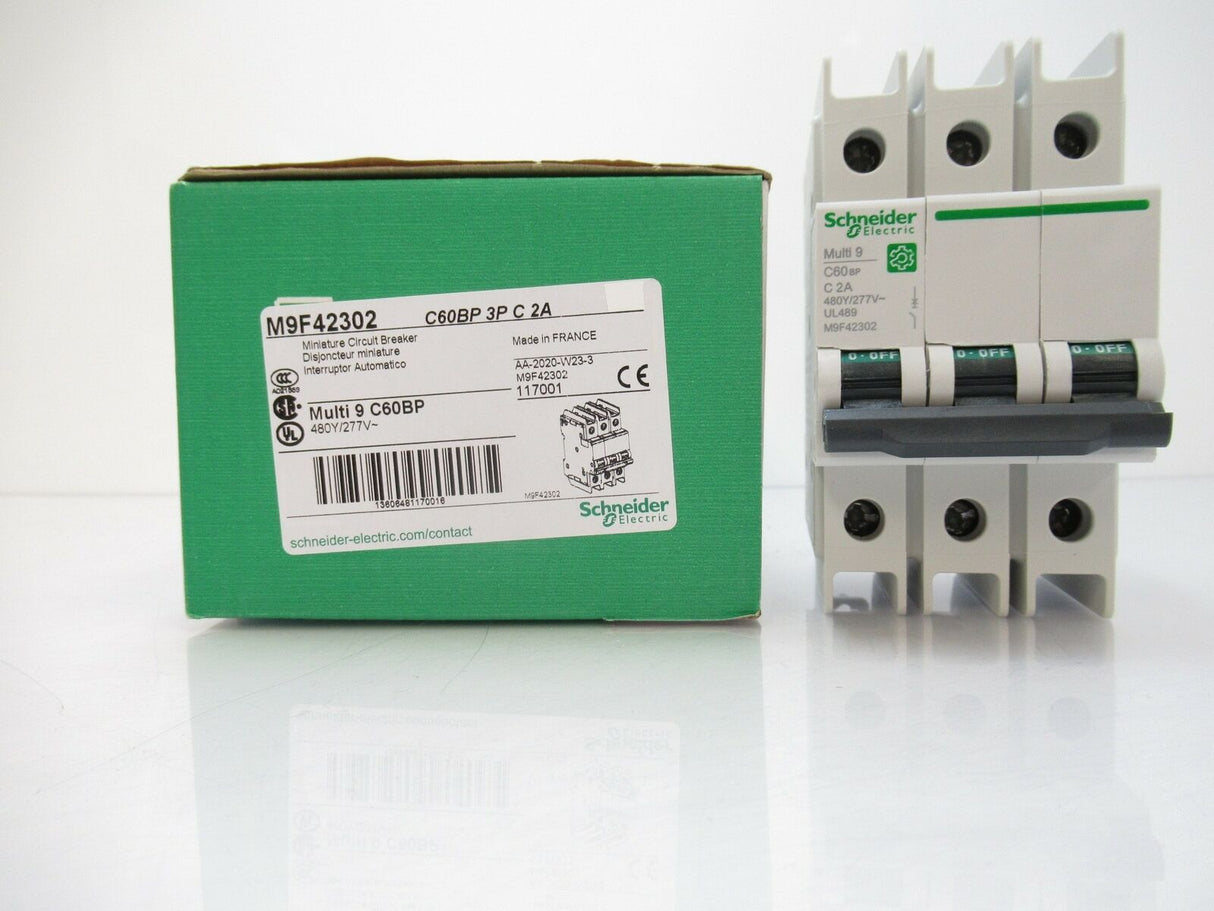

M9F42302 Schneider Electric Square D Miniature Circuit-Breaker Multi 9
by Multi 9
Sold out
$42.46 USD
FACTORY SUPPLY BRAND NEW
SKU BRE-1376-E
Only 0 left!
M9F42302
Schneider Electric Square D
Miniature Circuit-Breaker Multi 9 - C60BP - MCB - 3P - 2 A - C Curve - 480Y/277 V - 10 kA - UL 489
| range |
Multi 9
|
|
|---|---|---|
| product name |
Multi 9 C60
|
|
| product or component type |
Miniature circuit-breaker
|
|
| device short name |
C60BP
|
|
| device application |
Distribution
|
|
| poles description |
3P
|
|
| number of protected poles |
3
|
|
| [In] rated current |
2 A at 25 °C conforming to EN/IEC 60947-2
|
|
| network type |
AC
|
|
| trip unit technology |
Thermal-magnetic
|
|
| curve code |
C
|
|

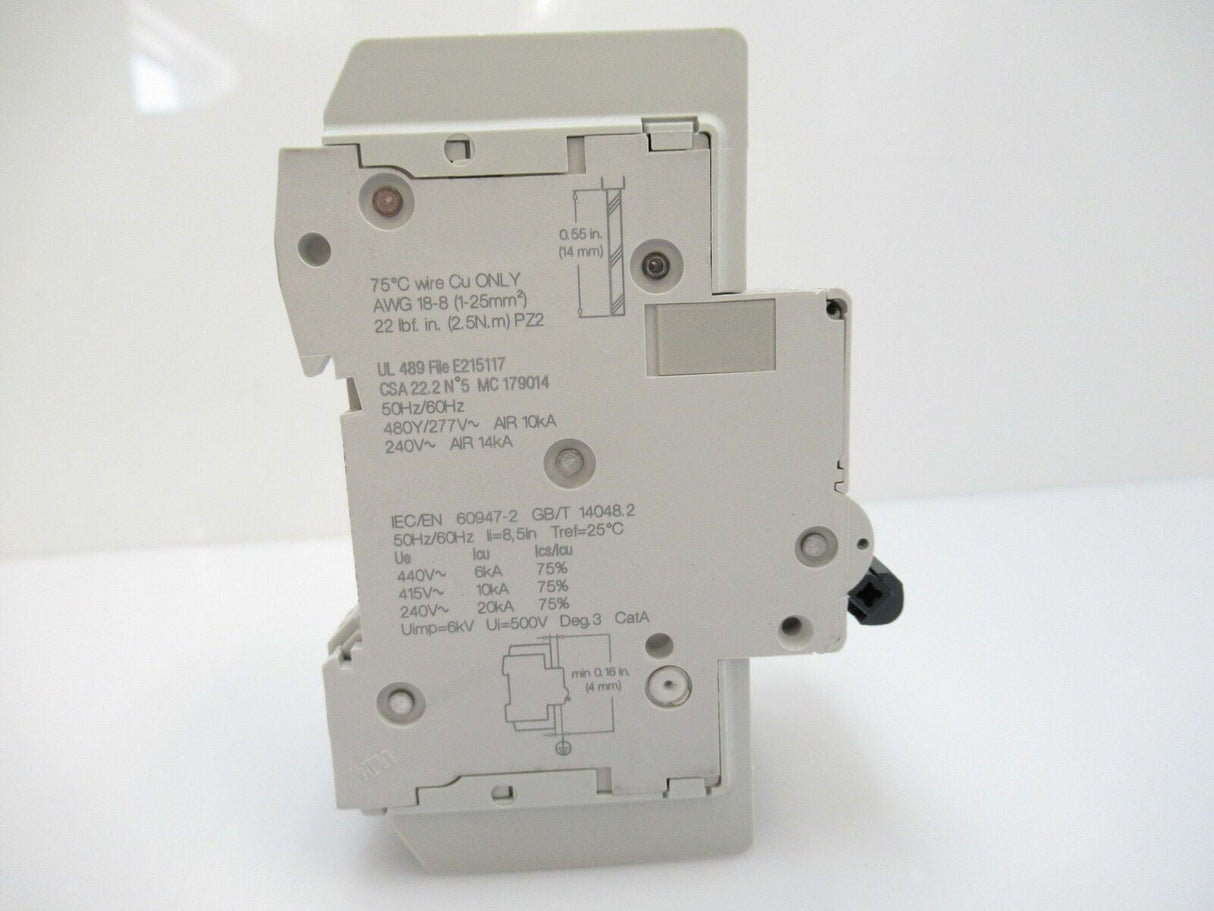

| breaking capacity |
6 kA Icu at 440 V AC conforming to EN/IEC 60947-2
10 kA Icu at 415 V AC conforming to EN/IEC 60947-2 20 kA Icu at 240 V AC conforming to EN/IEC 60947-2 6 kA Icu at 440 V AC conforming to GB 14048.2 10 kA Icu at 415 V AC conforming to GB 14048.2 20 kA Icu at 240 V AC conforming to GB 14048.2 14 kA AIR at 240 V AC conforming to UL 489 10 kA AIR at 480Y/277 V AC conforming to UL 489 14 kA AIR at 240 V AC conforming to CSA C22.2 No 5 10 kA AIR at 480Y/277 V AC conforming to CSA C22.2 No 5 |
|
| suitability for isolation |
Yes conforming to EN/IEC 60947-2
|
|
| standards |
EN/IEC 60947-2
GB 14048.2 UL 489 CSA C22.2 No 5 |
|
| product certifications |
IEC
CCC CSA UL |
| [Ue] rated operational voltage |
240 V AC 50/60 Hz
415 V AC 50/60 Hz 440 V AC 50/60 Hz |
|
|---|---|---|
| magnetic tripping limit |
8.5 x In +/- 20 % AC
|
|
| [Ics] rated service breaking capacity |
4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC
7.5 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC 15 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % conforming to GB 14048.2 - 440 V AC 7.5 kA 75 % conforming to GB 14048.2 - 415 V AC 15 kA 75 % conforming to GB 14048.2 - 240 V AC |
|
| [Ui] rated insulation voltage |
500 V AC conforming to EN/IEC 60947-2
|
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN/IEC 60947-2
|
|
| contact position indicator |
Yes
|
|
| control type |
Toggle
|
|
| local signalling |
ON/OFF indication
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| 9 mm pitches |
6
|
|
| height |
103 mm
|
|
| width |
54 mm
|
|
| depth |
72 mm
|
|
| colour |
Grey
|
|
| mechanical durability |
20000 cycles
|
|
| electrical durability |
10000 cycles
|
|
| provision for padlocking |
Padlockable
|
|

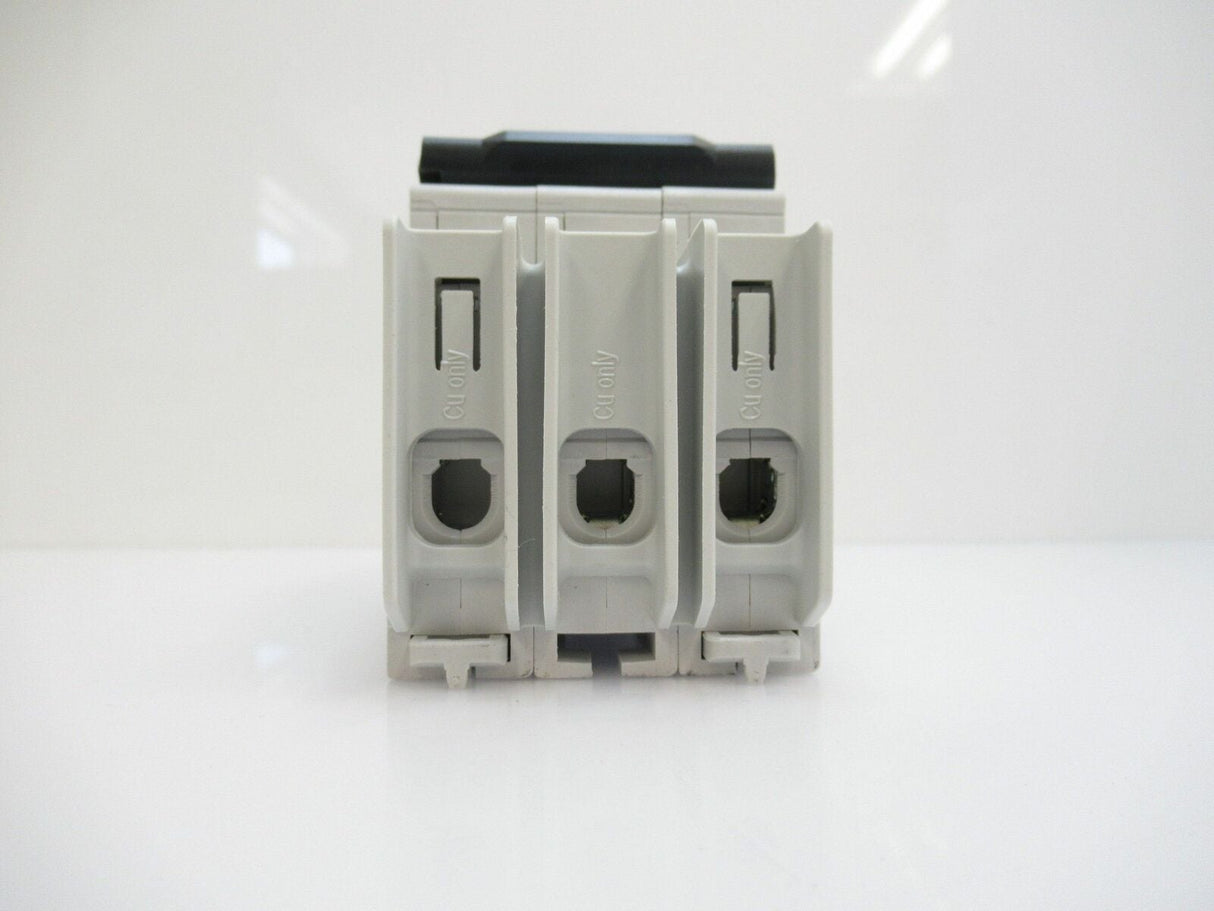

| connections - terminals |
Tunnel type terminal (top or bottom)1…25 mm² (AWG 18...AWG 8) - rigid
Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal (top or bottom)1…16 mm² (AWG 18...AWG 8) - flexible |
|
| wire stripping length |
14 mm for top or bottom connection
|
|
| tightening torque |
2.5 N.m top or bottom
|
|
| earth-leakage protection |
Without
|
