ATMR2 Mersen Ferraz Shawmut Fuses

SKU BRE-0005-E
Sold out
Original price $3.35 USD - Original price $3.35 USD
Original price
$3.35 USD
$3.35 USD - $3.35 USD
Current price $3.35 USD
Availability:
Out of stock

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Specifications
Request a quote

Industrial Automation Parts is Not Authorized Distributor of this product. Manufacturer's Warranty & Support DO NOT apply. Our IAP warranty of 3 month is applicable.

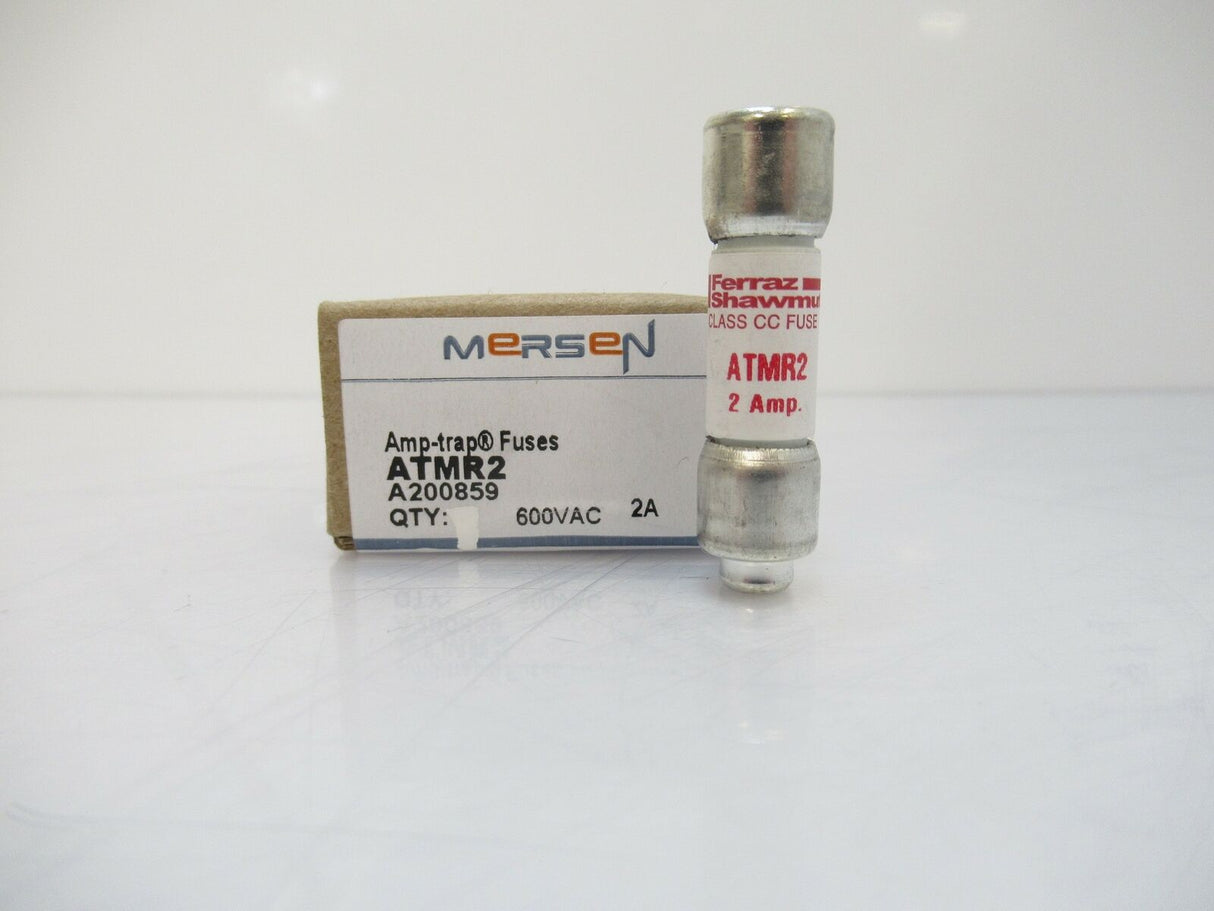

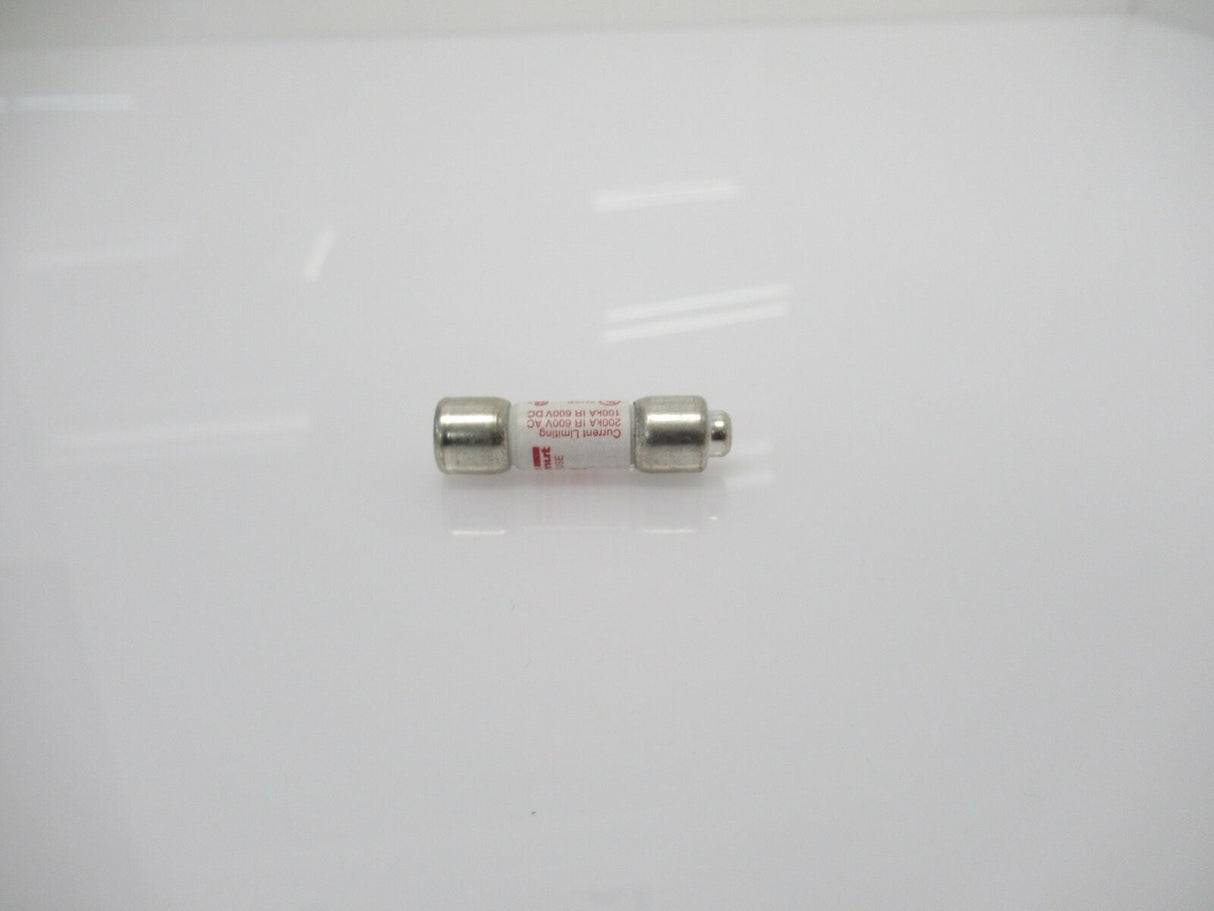

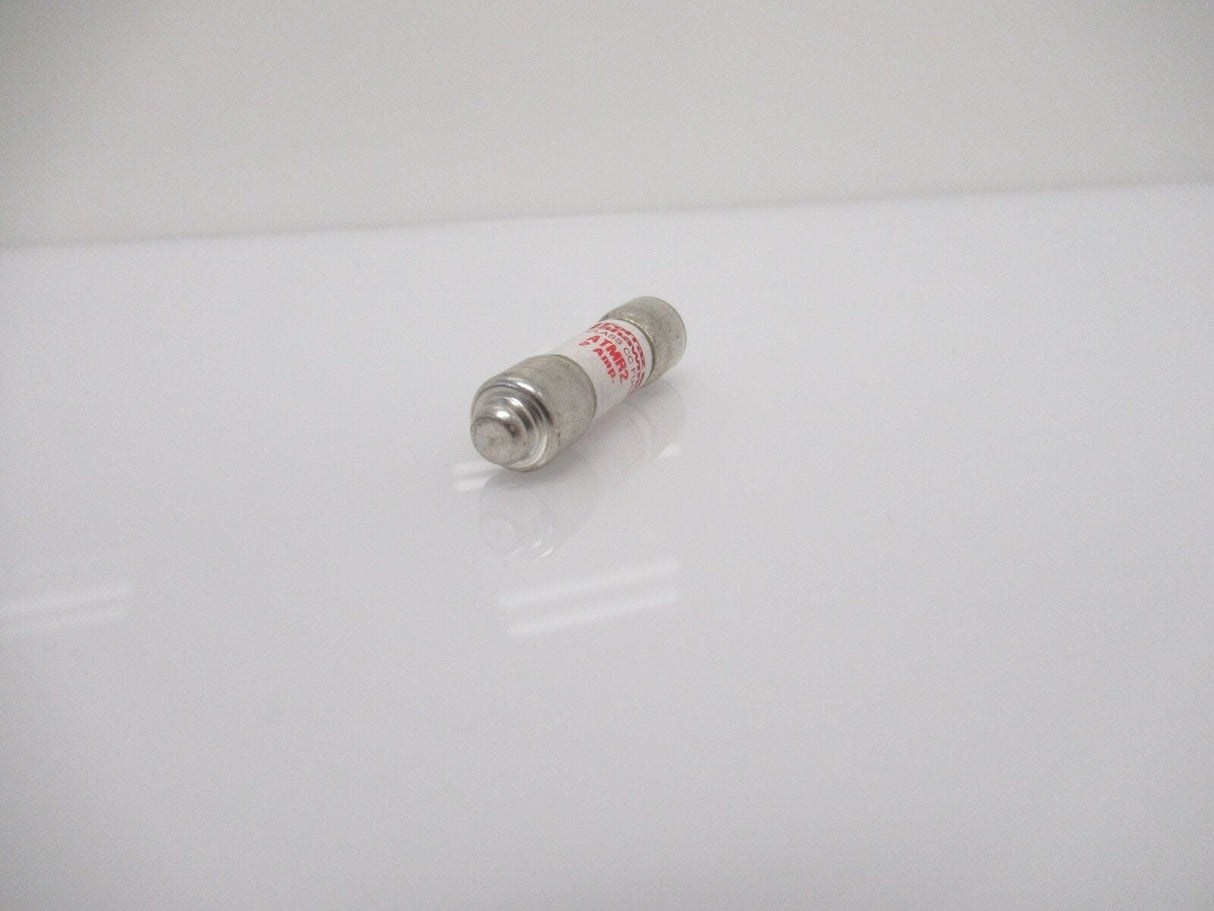

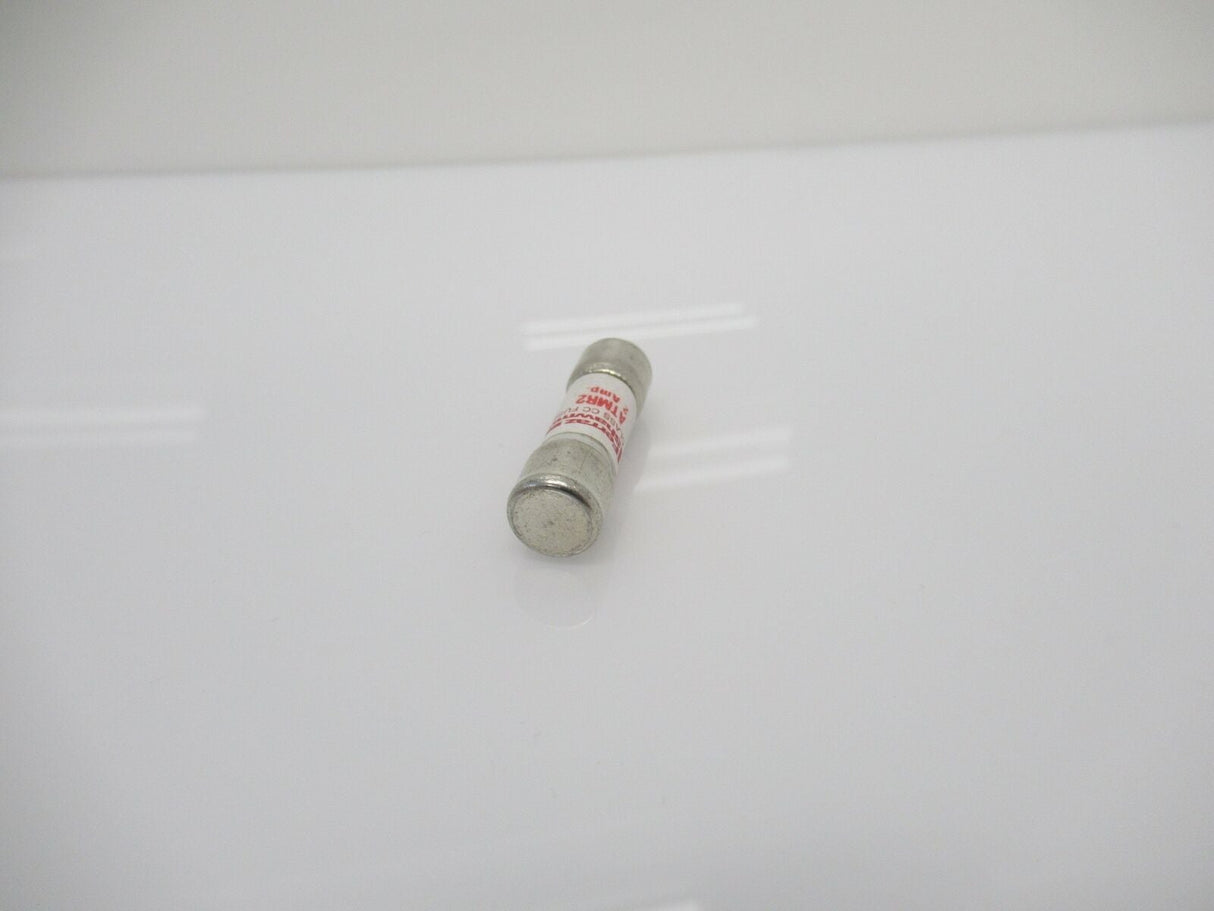

ATMR2 Mersen Ferraz Shawmut

(Sold Per Pack Of 10 New)

Description

Fuse, Fast-Acting, Class CC, 200kA I.R AC/100kA I.R DC, 600VAC/DC, 2A

Product Specifications
Product Attribute Attribute Value
Application Control Circuits Lighting General Loads
Body Material Glass
Class Class CC
Contact Material Tin-plated Copper
Current Rating 1.8 A
Series Amp-Trap ATMR Series
Speed Fast Acting
Standards UL Listed to Standard 248-4, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.4 RoHS Compliant
Termination Cartridge
Voltage Rating 600 VAC ; 600 VDC

Overview

Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
