Delock 87772 Usb Type-C™ Dp 1.4 Docking Station Triple 4K Display
Delock 87772 Usb Type-C™ Dp 1.4 Docking Station Triple 4K Display is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Being a Canadian company, our U.S. shipments are subject to tariffs. Under DDP (Delivered Duty Paid), all applicable tariffs and fees are calculated and paid upfront at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delock 87772 Usb Type-C™ Dp 1.4 Docking Station Triple 4K Display
Country Of Origin: China
- Connectors:
1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female - Battery Charging
specification BC1.2
2 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
1 x HDMI-A female
2 x DisplayPort female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
1 x Headset 3.5 mm 4 pin jack
1 x SD slot
1 x Micro SD slot
1 x DC jack

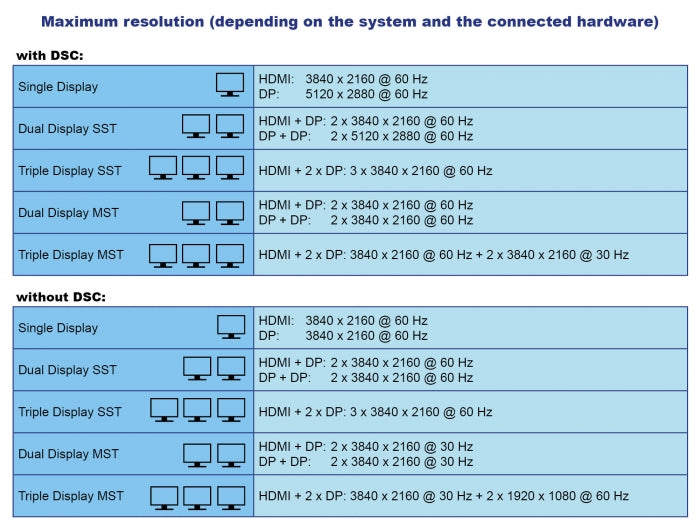

- Maximum resolution (depending on the system and the connected hardware):
with DSC:
| Single Display | HDMI: 3840 x 2160 @ 60 Hz DP: 5120 x 2880 @ 60 Hz |
| Dual Display SST | HDMI + DP: 2 x 3840 x 2160 @ 60 Hz DP + DP: 2 x 5120 x 2880 @ 60 Hz |
| Triple Display SST | HDMI + 2 x DP: 3 x 3840 x 2160 @ 60 Hz |
| Dual Display MST | HDMI + DP: 2 x 3840 x 2160 @ 60 Hz DP + DP: 2 x 3840 x 2160 @ 60 Hz |
| Triple Display MST | HDMI + 2 x DP: 3840 x 2160 @ 60 Hz + 2 x 3840 x 2160 @ 30 Hz |
without DSC:
| Single Display | HDMI: 3840 x 2160 @ 60 Hz DP: 3840 x 2160 @ 60 Hz |
| Dual Display SST | HDMI + DP: 2 x 3840 x 2160 @ 60 Hz DP + DP: 2 x 3840 x 2160 @ 60 Hz |
| Triple Display SST | HDMI + 2 x DP: 3 x 3840 x 2160 @ 60 Hz |
| Dual Display MST | HDMI + DP: 2 x 3840 x 2160 @ 30 Hz DP + DP: 2 x 3840 x 2160 @ 30 Hz |
| Triple Display MST | HDMI + 2 x DP: 3840 x 2160 @ 30 Hz + 2 x 1920 x 1080 @ 60 Hz |
- Transmission of audio and video signals
- Functions: Mirrored or Extended (depending on the operating system)
- Supports HDCP 1.4
- Supports HDR
- Output power for host: max. 85 W
- Colour: grey
- Dimensions (LxWxH): ca. 180 x 77 x 18 mm
Power supply specification
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
-
