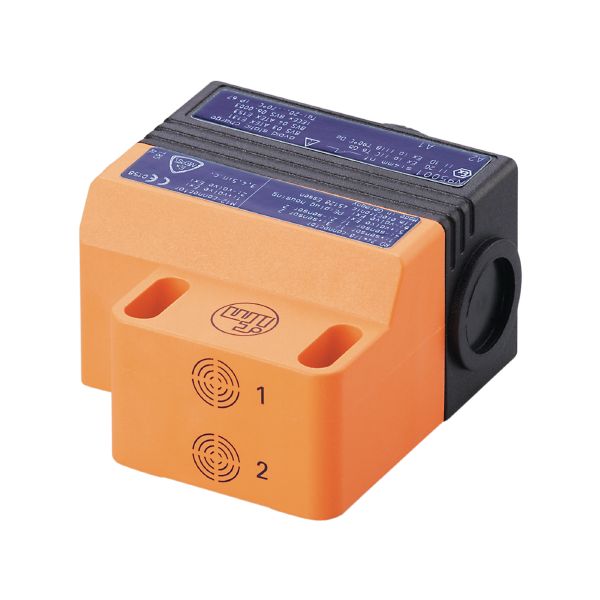

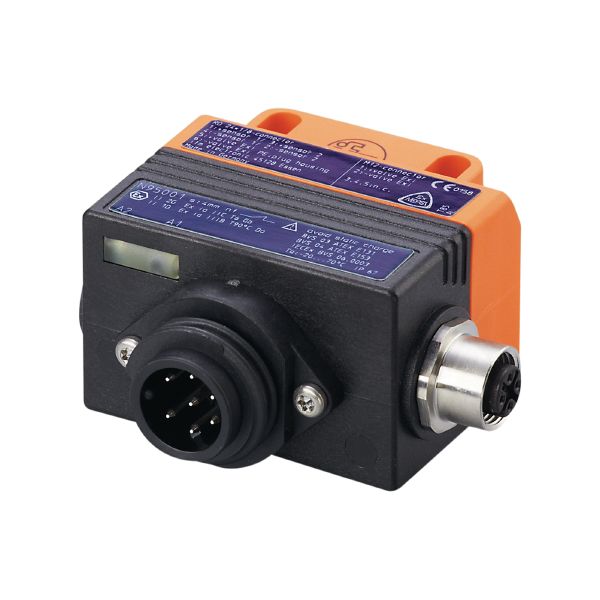

Ifm N95001 Inductive Namur Dual Sensor For Valve Actuators
Country Of Origin:
| Electrical design | NAMUR |
|---|---|
| Output function | 2 x normally closed |
| Sensing range [mm] | 4 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 26 x 60 |
| Application | For mechanical interfaces to ISO 5211 (VDI/VDE) |
|---|
| Connection at circuit amplifier | yes |
|---|---|
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC [V] | 8.2; (1kΩ) |
| Current consumption [mA] | < 1; (disabled; conductive: > 2,2) |
| Protection class | III |
| Electrical design | NAMUR |
|---|---|
| Output function | 2 x normally closed |
| Switching frequency DC [Hz] | 250 |
| Sensing range [mm] | 4 |
|---|---|
| Real sensing range Sr [mm] | 4 ± 10 % |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch-point drift [% of Sr] | -10...10 |
| Ambient temperature [°C] | -20...70 |
|---|---|
| Protection | IP 67 |
| Approval | BVS 03 ATEX E 131 X; BVS 04 ATEX E 153 X; IECEX BVS 06.0003X | ||
|---|---|---|---|
| ATEX marking |
|
||
|
|
|||
|
|
|||
|
|
|||
| EMC |
|
||
| Shock/vibration resistance | 30 g (11 ms) / 10-55 Hz (1 mm) | ||
| MTTF [years] | 1232 |
| Max. internal capacitance [nF] | 150; (per intrinsically safe electric circuit) |
|---|---|
| Max. internal inductance [µH] | 150; (per intrinsically safe electric circuit) |
| Weight [g] | 175 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 26 x 60 |
| Material | housing: PBT; cover: PC |
| Display |
|
|---|
| Remarks |
|
|||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connector: 1 x M12; coding: A |
| Connection | Connector: Rd24; coding: A |
|---|
