Ifm | SKU: IF-MX5000-E | Barcode: DOES NOT APPLY

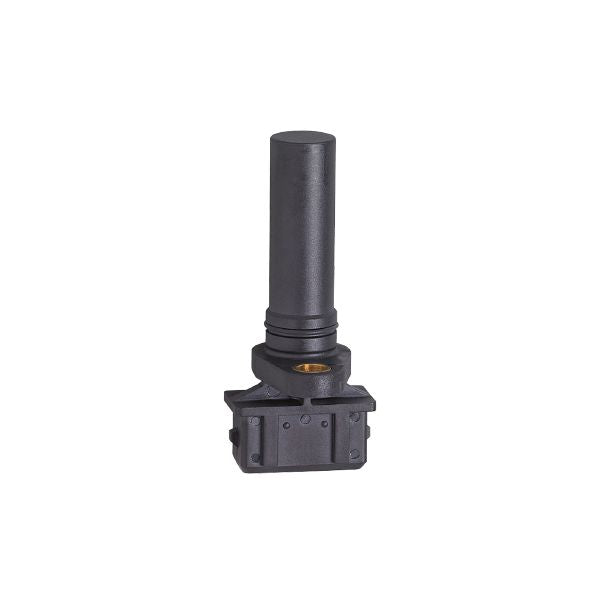

Ifm MX5000 Rotational Speed Sensor

$106.67 USD

Shipping calculated at checkout.

Ifm MX5000 Rotational Speed Sensor is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Tariffs And Fees

Being a Canadian company, our U.S. shipments are subject to tariffs. Under DDP (Delivered Duty Paid), all applicable tariffs and fees are calculated and paid upfront at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Country Of Origin:

Product characteristics

Electrical design	NPN
Sensing range [mm]	1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.)
Dimensions [mm]	Ø 15 / L = 70

Electrical data

Operating voltage [V]	7...30 DC
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	no

Outputs

Electrical design	NPN
Permanent current rating of switching output DC [mA]	50
Switching frequency DC [Hz]	2...15000
Short-circuit protection	no

Monitoring range

Sensing range [mm]	1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.)
Operating distance [mm]	1

Operating conditions

Ambient temperature [°C]

-32...140

Ambient temperature [°C]

125

Note on ambient temperature

for the plug area

Protection

IP 67; IP 69K; (plug: IP 54)

Tests / approvals

EMC

EN 61000-4-2	4 kV CD / 8 kV AD
EN 61000-4-3	10 V/m
EN 61000-4-4	2 kV
EN 61000-4-6	10 V
EN 61000-4-8	30 A/m

Shock resistance

DIN EN 60068-2-27

30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

Salt spray test

EN 60068/2-11

96 h 5 % NaCl bei 25 °C

MTTF [years]

2247

Mechanical data

Weight [g]	23.5
Dimensions [mm]	Ø 15 / L = 70
Material	Socket: brass; housing: PA; O-ring: FKM
Tightening torque [Nm]	7
Toothed wheel module [mm]	1.25
Installation length [mm]	45

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x AMP-Junior Timer (282 192-1)

Diagrams and graphs

Switching signals

	phase shift 90° +/- 20°
	pulse/pause ratio 50 % +/- 10 %
	Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.
