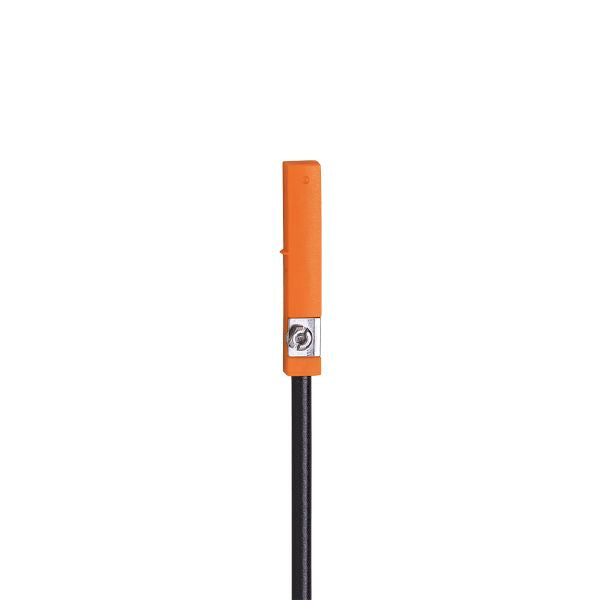

Ifm MR0100 T-Slot Cylinder Sensor With Reed Contact
Country Of Origin:
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Dimensions [mm] | 30.5 x 5 x 6.5 |
| Operating voltage [V] | 5...120 AC/DC; (UL supply class 2: 5...60 DC / 5...30 AC) |
|---|---|
| Protection class | II |
| Reverse polarity protection | yes |
| Reverse polarity protection | yes |
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 5 |
| Max. voltage drop switching output AC [V] | 5 |
| Permanent current rating of switching output AC [mA] | 100; (External protective circuit for inductive load (valve, contactor, etc.) necessary.) |
| Permanent current rating of switching output DC [mA] | 100; (External protective circuit for inductive load (valve, contactor, etc.) necessary.) |
| Switching frequency AC [Hz] | 1000 |
| Switching frequency DC [Hz] | 1000 |
| Max. switching power [W] | 10 |
| Short-circuit protection | no |
| Short-circuit proof | no |
| Overload protection | no |
| Magnetic sensitivity [mT] | 2.1 |
|---|---|
| Travel speed [m/s] | 10 |
| Hysteresis [mm] | 1 |
|---|---|
| Repeatability [mm] | -0.2...0.2 |
| Max. fall time [ms] | 0.1 |
|---|---|
| Max. make time incl. bounce [ms] | 0.6 |
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 65; IP 67 |
| EMC |
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 11303 | ||||||||||||
| UL approval |
|
| Weight [g] | 26.7 |
|---|---|
| Mounting | flush mountable |
| Cylinder type | T-slot cylinders |
| Dimensions [mm] | 30.5 x 5 x 6.5 |
| Material | housing: PA; Fastening clamp: stainless steel |
| Switching cycles when connected to PLC [Mio] | < 40 |
| Display |
|
|---|
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 0,175 A; fast acting |
|---|
| Items supplied |
|
|---|
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Cable: 2 m, PUR; 2 x 0.14 mm² |
|---|
